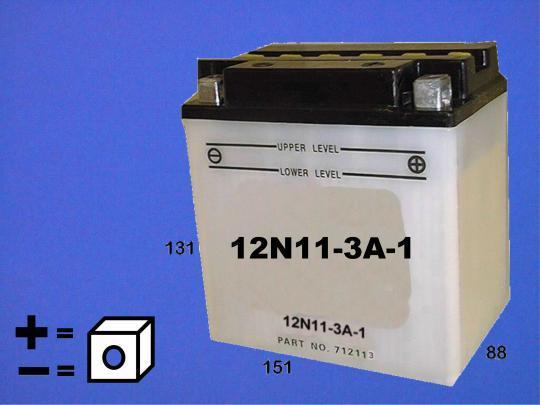

Picture of Suzuki GT 550 A/B 76-77 Battery Pattern

Part Description

Suzuki GT 550 A/B 76-77 Battery Pattern

Conventional Batteries

To maximize the life of your new battery Wemoto provides installation and care guides for all types of batteries:

All conventional batteries sold dry require acid. Find our 400ml acid packs for conventional batteries here:

You will need to charge your new battery before use. If you do not already have access to a battery charger for its first charge, our chargers are here:

All batteries naturally discharge slowly when not in use, and a vehicle with an immobiliser can hasten this process. We recommend that if your battery is not in use that you remove it from your vehicle and keep it on an intelligent charger to keep it happy and healthy.

151mm x 131mm x 88mm

Delivery and Returns

We want you to be happy with your purchase. If you're not, just return the products to our warehouse. Unless faulty, we'd like this to be within 30 days of purchase. Exceptions apply to certain products.

Read our full returns policies

Battery Types

Motorcycle Batteries come in four basic types: Conventional, Yumicron, User Activated Maintenance Free and Factory Activated Maintenance Free. Each requires a slightly different commissioning procedure.

Battery Identification
  • Conventional and Yumicron Batteries can be identified easiest by the removable plastic plugs they have at the top of each cell, 6 plugs for a 12V and 3 for a 6V battery. Conventional batteries generally have part numbers starting with either 6N or 12N depending on voltage. The Yumicron batteries generally have part numbers starting with YB or CB depending on manufacturer, and are only available as 12 Volt units. These types of battery are more common on older machines and usually have an overflow pipe outlet on one side.
  • User Activated Maintenance Free Batteries or more commonly just Maintenance Free are usually supplied with a 6 cell acid package and a single sealing cap strip which will seal all 6 cells of the battery simultaneously. This type of battery does not have an overflow pipe, the casing is normally opaque and the part numbers generally start with YTX, GTX, ETX or CTX depending on the manufacturer.
  • Factory Activated Maintenance Free Batteries or more commonly Gel Batteries are generally opaque and completely sealed. The part numbers of Gel Batteries are a little more varied starting with CT, CTZ, YT, YTZ amongst others. Note: Gel type batteries require a charging voltage of at least 14.0 volts as opposed to 13.8 volts for liquid electrolyte types, so if upgrading check that the charging system is suitable.

... Read more » Battery Installation Guide

General Care

Motorcycle batteries like being used. They do not like being neglected, unused or uncharged.

If left for any length of time without being charged, even if they are not connected, all lead-acid batteries will go through a natural process of self-discharging, motorcycle batteries because of their composition tend to be more prone to this than other lead acid batteries. If the battery has reached the stage of being deeply discharged it is often impossible to recover, even if the battery itself is relatively new. If the battery is connected to the bike and the bike has an alarm or immobiliser fitted the time it takes a battery to reach a deeply discharged state can be short, often a matter of days.

Regular charging is the only way to ensure a long life from your battery and work against the natural process of self-discharge. Most intelligent motorcycle battery chargers come with leads which can be permanently fixed to your battery with the battery connector neatly hidden away in the bike. Charging is then a easy matter of plugging the connector in to the charger.

... Read more » Battery Care Guide

6V and 12V Lead Acid Battery Chargers

Motorcycle and Scooter Battery Chargers

A lead acid battery will naturally self-discharge at a rate of 0.2-1.0% per day - and that's before the constant drain of an alarm, immobiliser or other accessory.

For the longest effective working life, a battery should be kept at full or near full charge capacity. This can be obtained with the use of an intelligent charger.

Automatic (Intelligent or 'Trickle') Chargers

A trickle charger (or smart charger) is so called because once the battery is detected as fully charged, it will reduce the power (to a 'trickle' ) to recover a battery's self-discharge without allowing it to overcharge.

How Motorcycle Chargers Work

Conventional lead-acid batteries are constructed of a number of lead plates submerged in the electrolyte. Motorcycle and scooter batteries are capable of a large power-to-weight ratio compared to other types of battery, by utilizing a large number of thin lead plates, maximising the surface area for electrolysis. The downside is that these plates are fragile and easily damaged by deep discharge.

... Read more » Battery Chargers

The government has added sulphuric acid to its list of regulated substances in The Poisons Act 1972. Due to this latest amendment, as of July 1st, 2018, members of the public must have an Explosives Precursors and Poisons (EPP) licence to buy sulphuric acid above 15% concentration.

How are sales of batteries and battery acid affected?

For members of the public who do not hold a valid EPP licence, the legislation will affect the sale of batteries in the following ways;

Lithium-ion, AGM & GEL batteries

Acid-free and factory-activated batteries will be unaffected by the change and are available to purchase as normal via our on-line shop or in store.

Maintenance-free (un-activated) batteries – previously supplied with a separate acid pack for home-activation.

Under the new law, we are no longer able to supply these batteries as they come. Instead, prior to shipping, they will be filled, charged and tested by our trained staff on site. Although we will endeavour to keep a small stock of our most popular batteries ready for dispatch, in most cases Next Day Delivery will no longer be available on these items due to charging and testing times.

... Read more » Buying motorcycle batteries as of July 1st, 2018
